Anchanto OMS & PG Mall Integration Guide

1. Integration Details
2. Credentials Needed for Store Connection
3. Best Practices for Product Data Synchronization with OMS
4. Supported Features & Operations At store Connection
5. Catalogue Management
6. Inventory & Price Management
7. Order Management

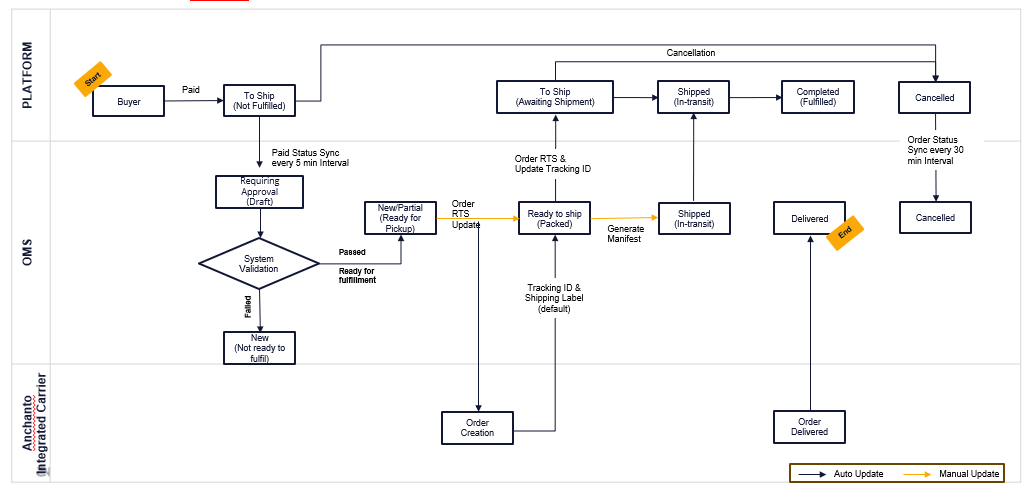

8. Order Management – System Flow Overview
9. Order Management - Order Status Mapping

Systems Involved

• Anchanto OMS (Anchanto Order Management System)
• PG Mall Marketplace

Countries Supported

1. Malaysia

Supported API Version

• Version 4.0

1. Auth Key

How to get Auth Key

1. Access Developer/API Settings

• Log into the seller/partner portal.

• Navigate to Settings or API Integration section (sometimes under “Developer Tools” or “API Settings”).

2. Apply for API Access

• If PGmall requires approval, you may need to submit a request for API access, describing your use case (i.e., integration with OMS).

3. Generate Authkey / API Token

• Once approved, go to the API credentials section and generate your Authkey (this may be labeled as API Key, Client ID/Secret, or Token).

1. Unique SKU: All products in the marketplace or store must have unique Stock Keeping Units (SKUs) to ensure accurate synchronization with OMS. Only one product from duplicate SKU will get sync in OMS/OXM.
2. Proper Product Data Structure: The product data structure (including product attributes, descriptions, and stock quantities) should be consistent and complete.
3. Product Prices: Ensure the pricing of all the products are updated and pricing configurations are consistent and aligned with OMS settings.

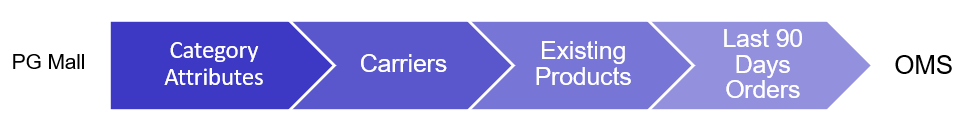

• Auto sync the existing category attributes and products with basic details like product name, SKU, price, stock & first image from PG Mall to Anchanto OMS App once the seller connects their PG Mall account with Anchanto OMS account.
• As soon as the syncing process will start, the OMS will sync the orders from last 90 days from the PG Mall in Anchanto OMS.
• Once the sync process begins, OMS syncs at a rate of 1,000 SKUs every 15 minutes.

1. Manual Product Sync:

   • Sellers can manually sync group (variation) products from PG Mall to Anchanto OMS as needed.

2. Product Listing
   • Sellers can list the single (non-variation) & group (variation) products one by one using Anchanto OMS user interface or list & update using bulk upload and update (excel template) feature available in Anchanto OMS.

3. Price and Stock Updates:

   • Sellers can update product prices and stock levels from Anchanto OMS to PG Mall store.

4. Product Deletion:

   • • Sellers can delete products from Anchanto OMS to PG Mall store.
5. Brand Authorization Requirement:
   • Sellers can sync brands from PG Mall to Anchanto OMS.

Known Challenges

1. Product Update:

   • Auto update products from PG Mall store to Anchanto OMS is not available.

2. Product Status Management:

   • Sellers cannot activate or deactivate products from Anchanto OMS to PG Mall store.

1. Auto sync inventory from Anchanto OMS to the PG Mall store as and when it changes in Anchanto OMS on a real time basis.
2. Sync inventory manually from Anchanto OMS to the PG Mall store using Sync Stock (if required).
3. Sellers can manage prices for all products individually via Anchanto OMS.
4. Price Mapping -

Note - If the user did not set the selling price in OMS then only RSP will be updated to the PG Mall store.

1. Automatic Order Sync:

   • Orders with the following statuses are automatically synced from PG Mall to Anchanto OMS every 30 minutes with statuses "Cancelled", "Pending", "Shipped", "Shipment Received", "Pending for Pickup", "Payment Accepted".

   • New orders sync every 5 minutes.

2. Manual Order Sync:

   • Sellers can manually sync orders through Anchanto OMS by navigating to:

     • OMS >> Integrations >> Ecommerce Sales Channels >> PG Mall (Connected) >> Sync Orders

3. Shipping Integration:
   • The integration supports "Self ship and Shipped by sales channel" both.

Order Processing Workflow:

When using PG Mall integrated shipping carriers, the Ready to Ship status for orders will follow this automated workflow:

Step 1: Updating the Ready to Ship Status

• If the seller uses both Anchanto OMS and Anchanto WMS:

  • Once the order is physically picked, the status will be updated as Picked in Anchanto WMS.
  • This will automatically trigger the Ready to Ship status update in both Anchanto OMS and Blibli marketplace.

• If the seller uses only Anchanto OMS:

  • After physically picking all products in the order, the seller must manually update the status as Ready to Ship in Anchanto OMS.
  • This manual update will trigger the Ready to Ship status in the PG Mall.

Step 2: Syncing Shipping Details -

• Once PG Mall store successfully updates the Ready to Ship status:
  • A shipping label/AWB and tracking ID will be generated by Anchanto OMS.
  • From there, the information will be synced to Anchanto WMS for further order processing if they are using Anchanto OMS and WMS as solution.
  • The order status will be updated to "Delivered" in OMS once the seller updates the delivered status on Sales channel.
